BIN-CY300

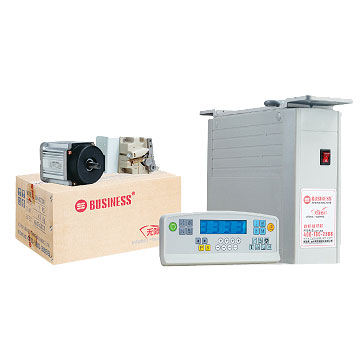

BUSINESS Electronic Control Box JIK-CY300 Series
Main Features Of Computer-Controlled System:
•BIN730/740/750/760/780 series direct-drive computer overlock machine with interoperable control system;
•BIN1558/N1668N series direct-drive coputer covering stitch machine with interoperable cotrol system;
•BIN9188MX-D3/8188M-D3/998M-D3 series direct-drive computer plain stitch machine with interoperable control system,embedded display and plug-type display;
•BIN7188M-D3/7188M-D2series direct-drive computer plain stitch machine with Interoperable control system;simple shear-thread and two-automatic functions can be used after resetting;
•Simple shear-thread/two-automatic functions(without display)can be used for automatic cutting thread,automatic pulling thread,etc;
•BIN730M-17DKS/740M-13DKS series overlock machine with interoperable peneumatic device;
•Control system with multi-point positioning mode will make position-ing more accurately;
•Software and hardware bi-directional protection;flow over control for solenoid valves;
•Switching power supply system to ensure that reversed and supply power immediately,automatic prolection as well;
•In case of any control system failure,please turn to professional and technical personnel,so as to avoid greater losses.
Control System Of Lockstitch Sewing Machine
Function Direct-drive a variety of functions Direct-drive a variety of functions
Motor Type Ac Servo Motor Ac Direct Drive Motor
Voltage Range 170-255V/50Hz 170-255V/50Hz
Output Power 550W 500W
Pulley Size 75 65
Needle Up/down ¦Ï ¦Ï
Slow Start(r/min) 100-2000 200-1500
The maximum speed limit(r/min) 3700 200-7500
Maximum speed(r/min) 50-4500 200-4000
Automatic needle sewing speed(r/min) 100-800 200-400
Thread Trimming/wiping ¦Ï ¦Ï
Automatic Reverse Stitching ¦Ï ¦Ï
Protection Device ¦Ï ¦Ï
Free Sewing/fixing Sewing ¦Ï ¦Ï
Mode Sewing Four/Seven/Ten Sections Four/Seven/Ten Sections
Stitch/backstitch ¦Ï ¦Ï
Accelerated Curve Adjustment ¦Ï ¦Ï
Adhystable Parameters ¦Ï ¦Ï
Automatic Test ¦Ï ¦Ï
Note:"¦Ï" Is Standard Configuration.Presser Foot Lifter Is Optional.

Control System And Fault Code Of Overlock Sewing Machine And Interlock Sewing Machine
Function BIN-8 Direct Drive Mult-functions BIN-9 Direct Drive Mult-functions
Motor Type Direct Drive Motor Direct Drive Motor
Voltage Range 165-250V 165-250V
Output Power 350W 400W
Current 4.5A 4.5A
Frequency 50Hz 50Hz
Cartons 2 2
Poles 8 8
Revolutions 0-600r/min 0-3500r/min
Torques 0.20mm 0.20mm
Needle Position Upper Position Upper Position
E-01 Hardware Short-Circuit Protection Damaged Controller Driver,Motor Coil Short Circutit,Instantaneous Over Current
E-02Software Over-Crrent Protection Over Load
E-03Overload Protection Beyond The Motor Power
E-05 Inut Voltage Protection Power Supply Voltage Beyond The Scope
E-06 Stall Protection Locked-rotor Or Motor Phase Missing
E-07 No-load Protection Rising Sensor Failure,Magnet/Sensor/Wiring/Motor Missed
E-013 Encoder Fault Poor Contact Or Damage To The Motor Encoder
E-15 Pedal Fault Pedal Plug Connection Is Bad Or Circuit Problems
