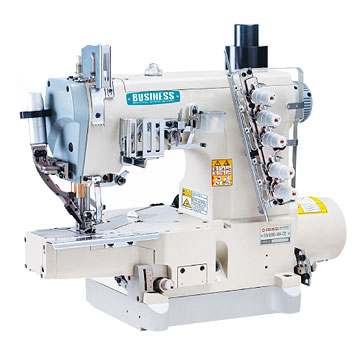

BIN668M-99A-D2
Small Square Head Type Automatic Thread Cutting Interlock Sewing Machine |
This series of product has small square head with mechanical and electrical integration,It can achieve a series of activties automatically including cutting ,presser raise-up.It is applicable to various decorative seaming.This machine is extremely suitable for sewing and stitching small parts,such as collars,cuffs,etc.
|
|
 |
|
| On the decorative line cutting |
 |
Decorative line cutting on the line,in particular the repuest to spend decorative line processes,the role of greater savings in the tangent cumbersome operation can significantly increase productivity. |

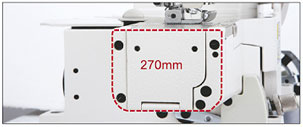

| Small square head |
 |
FoundationĄ¯s perimeter only then 270mm.the childrenĄ¯s clothing neckband and the sieeve cuff so on and small spotĄ¯s sewing,becomes simple relaxed. |
| Cut off the assembly line |
 |
The machine is equipped with electronic cut-line,without manual adjustment,to ensure accurale cuttting line in place. |
| Direct drive servo system |
 |
Equipped with direct-direct-drive device,whick makes the machines more intelligent,energy-saving technology has greatly
enhanced the efficiency of product processing,thereby reducing operating costs. |

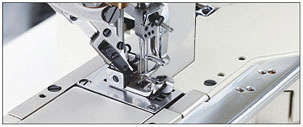

| Presser foot lift device |
 |
Foot pedal charge,charge can be lifted foot,the operation is very handy,not only can reduce the amount of operatorĄ¯s labor,
but also to increase productivity.
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
| BIN668M-99A-D2 |
Applicable to knittedfabric;Automatic
threadcutting,automatic
presser foot lifting |
2
3 |
2.4/3.2/4/4.8/5.6
4.8/5.6/6.4 |
6.3
5.0 |
0.5-1.3 |
6000 |
615x405x650 |
50/45 |
| BIN668N-01CB |
Basic model |
2
3 |
4.0/4.8/5.6/
5.6/6.4 |
6.3
5.0 |
0.6-1.3 |
6000 |
615x405x650 |
50/45 |
| BIN668N-02BB |
Sewing rolled edge |
2
3 |
2.4/3.2/4/4.8/5.6
4.8/5.6/6.4 |
5.0 |
0.6-1.3 |
4500 |
615x405x650 |
50/45 |
| BIN668N-35ZD |
Used for removing
the bottom welt
for left butter |
2
3 |
3.2/4.0/4.8
5.6/6.4 |
5.8
5.1 |
0.9-1.3 |
5000 |
615x405x650 |
50/45 | |
| |
|
 |
|
|
