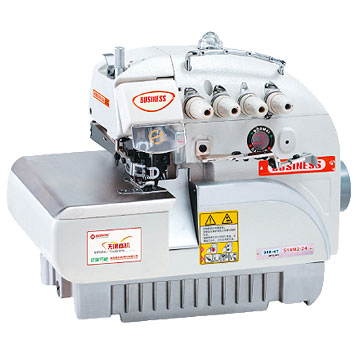

BIN988-4T

Super High-Speed Overlock Sewiing Machine Series


Casting technique using the whole body.to ensure that in the 6000 r/min to maintain low operating told the vibration of its high-speed,effictient,accurate positing,practical and easy,deeply user's welcome and praise.
HR cooling device
HR silicon oil equipment,can sew the synthetic fibre of poor heaat
resistance,lower the temperature of the needle,and also avoid the
thread breaking off and materials thaw in high temperature,makes
the presser foot beautifui & steady.

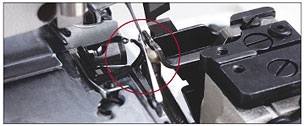

Mobile care needles
Mobile retaining needles only need to be protected.Eliminate
the high-speed operation of the machine when the secant.
Calibration machine needle.Reduce the wear and tear,
ensuring the ideal stitch beautiful.
Thread and double-loper thread-taking-up machanism
  The control of thread and needle on presser foot is determined to needle-thread device.because of adopting the new style needle-thread
and double-looper thread-taking-up mechanism,can get beautiful presser foot of fling needle.
The use of parabolic appearance
  The aircraft¡¯s latest shell designed curved parabolic shape,and has a national appearance patent certificate,it is more beautiful appearance.
Equipped with a simple Strong designed
The machine is equipped with a simple strong designed,not heat,energy-saving environmental protection,No auxiliary lighting.
Crankshaft rotation device
High-precision crankshaft devices,high-speed operation,without any noise,vibration,and easy maintenance.
Direct driving motor
  Equipped with computers,direct-drive motor to feed services to achieve a quick start braking the machine accuracy,lower
power consumption, Compared with the common drive,More than 60%power consumption reduction.
Oil filter device
  Adopting oil fliter device,ensures oil clean,guarantees the products,high speed operation,clean and change the fliter core in order
time,and also it is good for prolong the using life of the machines.
Super High-speed Overlock Sewing Machine Specification


BIN988-3T-504M2-04 General packet seam 1 DBX27#11 3 - 4/- 3.6 0.7-2 6 4000
BIN988-3T-504M1-15  Thin edge overlock 1 DBX27#9 3 - 1.5/- 3.6 0.7-2 6 3000
BIN988-3T-504M2-04/LFC-3  Elastic band sewn 1 DBX27#11 3 - 4/- 3.6 0.7-2 6 4000
BIN988-3T-504M2-04/TK  Shower cap sewing 1 DBX27#11 3 - 4/- 3.6 0.7-2 6 3500
BIN988-3T-504M2-04/BK Back into the seam 2 DBX27#11 3 - 4/- 3.6 0.7-2 6 3000
BIN988-4T-514M2-24  General packet Seam 2 DBX27#11 4 2 4/6 3.6 0.7-2 5.5 3000
BIN988-4T-514M5-23/BK  Back into the seam 2 DBX27#11 4 2 3/5 3.6 0.7-2 6 4000
BIN988-5T-516M2-35  General packet seam 2 DBX27#14 5 3 5/8 3.6 0.7-2 6 3000
BIN988-5T-401M2-50/TA  Packet seam side pockets 2 DBX27#14 5 5 -/- 3.6 0.7-2 6 4000
BIN988-5T-516M2-56  Scrap bag seam roll 2 DBX27#14 5 3 5/10 3.6 0.7-2 6 3500
BIN988-6T-516M2-324  General six-pack seam 3 DBX27#11 6 3-2 4/19 3.6 0.7-2 6 3000
